Azure AD Connector

Modified on Mon, 12 Jan at 4:49 PM

TABLE OF CONTENTS

Azure AD Connector Overview

Azure AD Connector Overview

The ManagementStudio Azure AD Connector enables the integration of Azure Active Directory (Azure AD) with ManagementStudio for centralised identity and access management. To use the connector, an Azure App must be registered in your Azure instance with the correct permissions. For instructions, see: How to create the Azure App.

The Azure AD Connector contains configurable panels:

Azure AD Discovery Status
Import User Options
User Update Options
Import Device Options
Device Update Options
Import Enterprise Apps
Enterprise Apps Update Options
Import SharePoint Sites (As Apps)
SharePoint Sites Update Options
Link Apps via Group Membership
Connection Options
Troubleshooting

Administrators can enable or disable each panel as required.

Best Practice Guidelines

Refer to Best Practice Guidelines for managing Azure AD integrations.

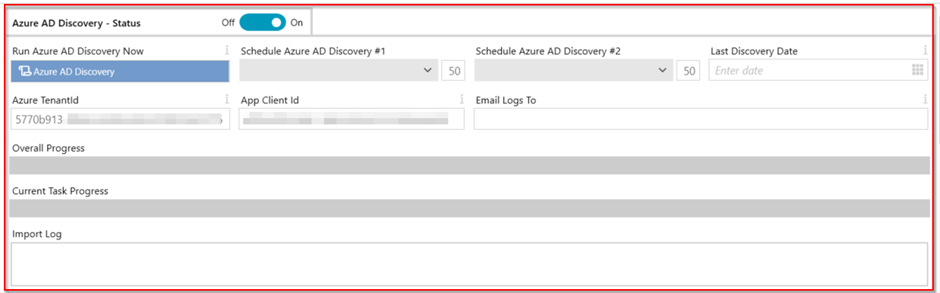

Azure AD Discovery Status

UI Element	Description
`Run Azure AD Discovery Now`	Run an immediate Azure AD discovery.
`Schedule Azure AD Discovery #1` `Schedule Azure AD Discovery #2`	Schedule regular Azure AD discovery tasks. How to create a scheduled task.
`Last Discovery Date`	Shows the date/time the last successful connector run occurred.
`Azure TenantId`	Enter the Microsoft 365 Tenant ID. Find your Tenant ID.
`App Client Id`	Enter the Application ID from Azure AD App registration. Find your App Client ID.
`Email logs To`	Email addresses to receive log reports after sync. Separate multiple with `;` (e.g. `t@blog.com;T@managementstudio.co.uk`).
`Overall Progress`	Displays sync progress overall.
`Current Task Progress`	Details progress of the current sync task.
`Import Log`	Displays connector logs.

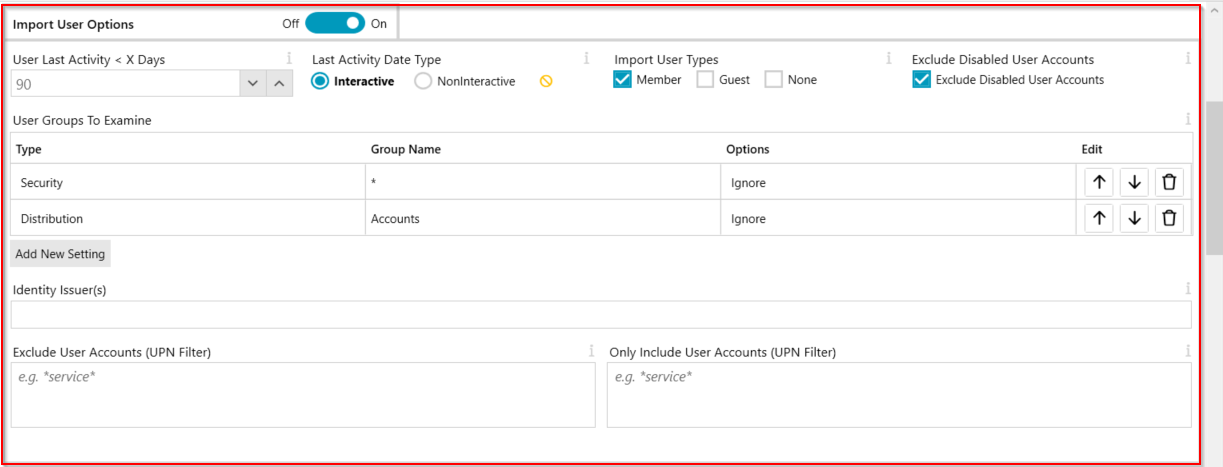

Import User Options

UI Element	Description
`User Last Activity < X Days`	Only import users with Azure Sign-In Activity in the last X days. Use `0` to import all users.
`Last Activity Date Type`	Select sign-in activity type: - Interactive Sign-Ins: Direct user login - Non-Interactive Sign-Ins: Performed by apps or OS components
`Import User Types`	Select user types to import.
`Exclude Disabled User Accounts`	Exclude disabled accounts from import.
`User Groups to Examine`	List Azure AD groups for user import: - Type: `Security`, `Distribution`, `365` - Group Name: AD group - Options: `Nested Members`, `Direct Members`, `Exclude Members`, `Ignore`
`Identity Issuer(s)`	Specify Identity Providers required for import.
`Exclude User Accounts (UPN Filter)`	Explicitly exclude users by UPN. One per line. Supports Regex: `John` (contains), `^John` (starts with), `John$` (ends with), `^John$` (exact)
`Only Include User Accounts (UPN Filter)`	Explicitly include only specified users. Supports same Regex as above.

User Update Options

UI Element	Description
`Don't Update User if Locked in MS`	Do not update locked ManagementStudio user records. (Not related to Azure AD user lock status.)
`When matching MS users to Azure users match on UPN, Email or Both`	When Azure ID is missing, match using UPN and/or email.
`User Field Mappings`	Map Azure AD user fields to ManagementStudio fields (Detail, Custom, Blueprint). Common mappings are preconfigured; additional mappings may be set. Convention: - Target: ManagementStudio field - MS Field: Path or field name in ManagementStudio - Azure AD Field: Azure AD user attribute
`Link Users to Devices via Azure Owner`	Link user to their device based on Azure Owner field.
`Device Last Activity < X Days`	Limit devices linked to user by recent login activity (last X days).
`Filter to MDM Type`	Limit devices linked by Mobile Device Management type.

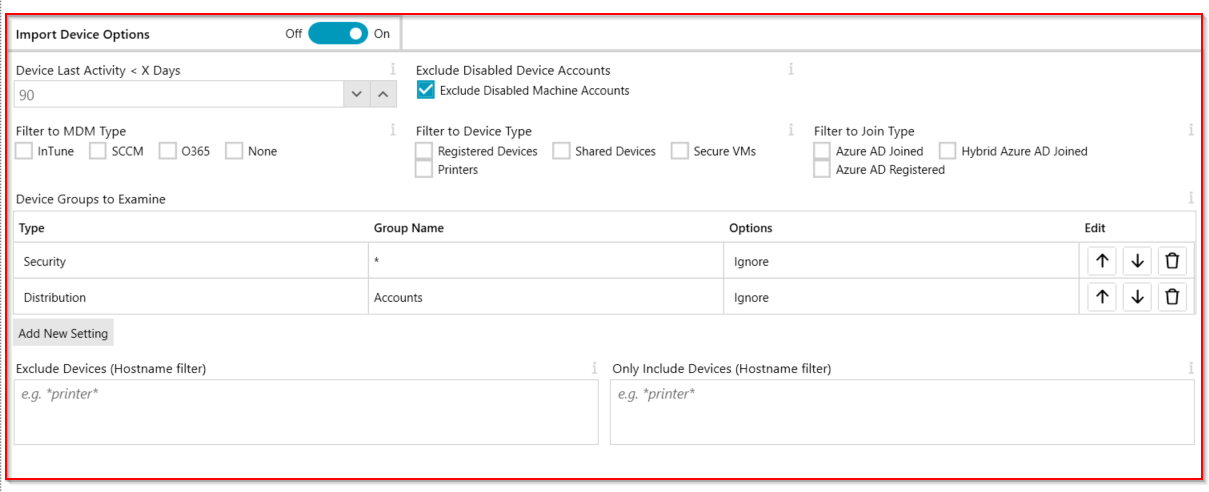

Import Device Options

UI Element	Description
`Device Last Activity < X Days`	Only import devices with Azure Sign-In Activity in the last X days. Use `0` for all.
`Exclude Disabled Device Accounts`	Exclude disabled devices from import.
`Filter to MDM Type`	Filter by MDM device type(s). Deselect all to remove filter.
`Filter to Device Type`	Filter by device type(s). Deselect all to remove filter.
`Filter to Join Type`	Filter by Azure Join type(s). Deselect all to remove filter.
`Device Groups to Examine`	List Azure AD groups for device import: - Type: `Security`, `Distribution`, `365` - Group Name: AD group - Options: `Nested Members`, `Direct Members`, `Exclude Members`, `Ignore`
`Exclude Devices (Hostname Filter)`	Exclude devices by hostname. Use `*` as wildcard. One per line.
`Only Include Devices (Hostname Filter)`	Only include specified devices by hostname. Use `*` as wildcard. One per line.

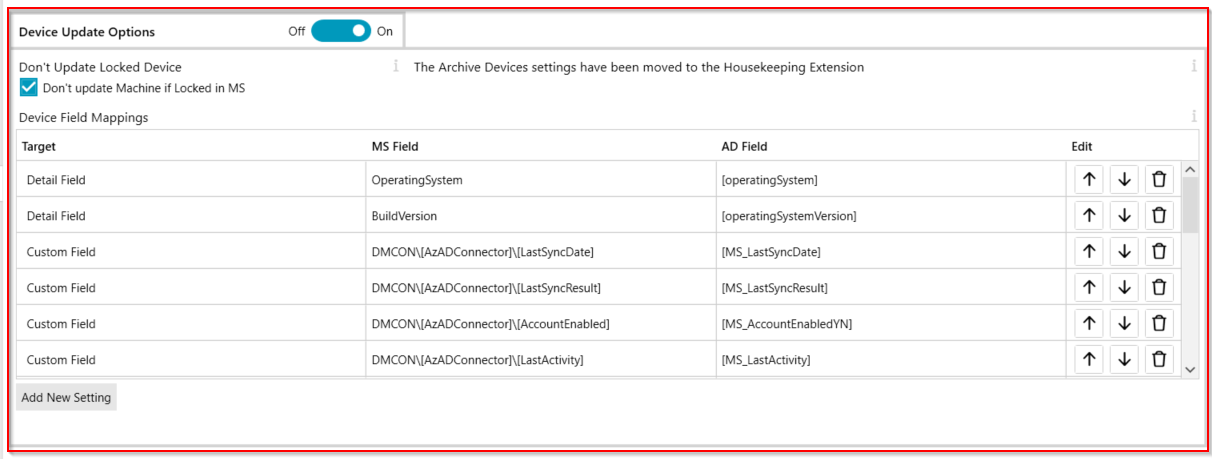

Device Update Options

UI Element	Description
`Don't update Machine if locked in MS`	Do not update locked ManagementStudio device records. (Not related to Azure AD device lock status.)
`Device Field Mappings`	Map Azure AD device fields to ManagementStudio fields (Detail, Custom, Blueprint). Convention: - Target: ManagementStudio field - MS Field: Path or field name - Azure AD Field: Azure AD device attribute

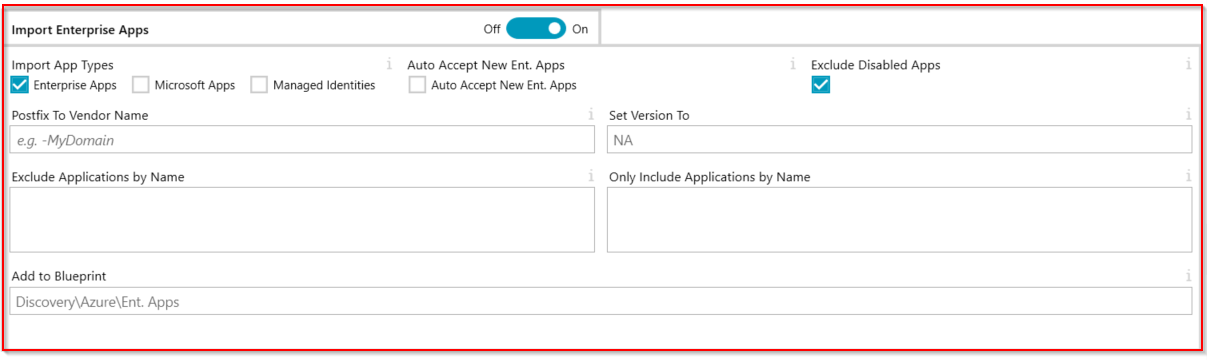

Import Enterprise Apps

UI Element	Description
`Import App Types`	Import only applications of selected type(s): - Enterprise Apps - Microsoft Apps - Managed Identities
`Auto Accept New Ent. Apps`	Directly add new apps to the `Accepted` queue (default is `Pending`).
`Exclude Disabled Apps`	Exclude disabled applications from import.
`Postfix to Vendor Name`	As there is no vendor field for Enterprise Apps, appends a chosen value after app type.
`Set Version To`	Apps lack a version field; this value will be used (defaults to `N/A` if blank).
`Exclude Applications by Name`	Exclude apps via Regex rules (one per line).
`Only Include Applications by Name`	Only import apps matching Regex rules (one per line).
`Add to Blueprint`	Add all new apps to specified Blueprint.

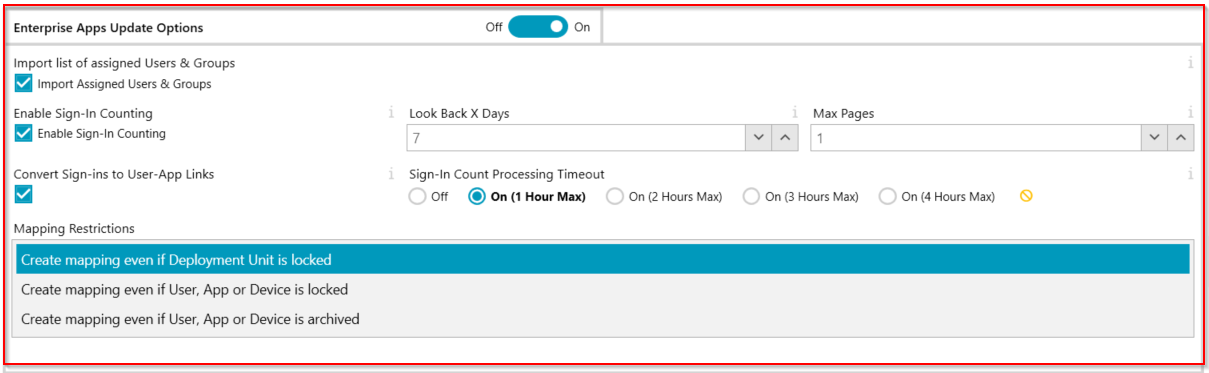

Enterprise Apps Update Options

UI Element	Description
`Import list of assigned Users & Groups`	Import users and groups assigned to applications.
`Enable Sign-In Counting`	Track active application use via sign-ins. Requires elevated Azure privileges; slow process.
`Look Back X Days`	Number of days to examine sign-in logs (recommended: 7 days).
`Max Pages`	Maximum sign-in log pages to fetch (recommended: 1 day).
`Convert Sign-ins to User-App Links`	Create links based on sign-in activity.
`Sign-In Count Processing Timeout`	Limit time spent per run processing sign-in counts. Connector resumes on next run.
`Mapping Restrictions`	Allow mapping even if: Deployment Unit is locked, or User/App/Device is locked/archived.

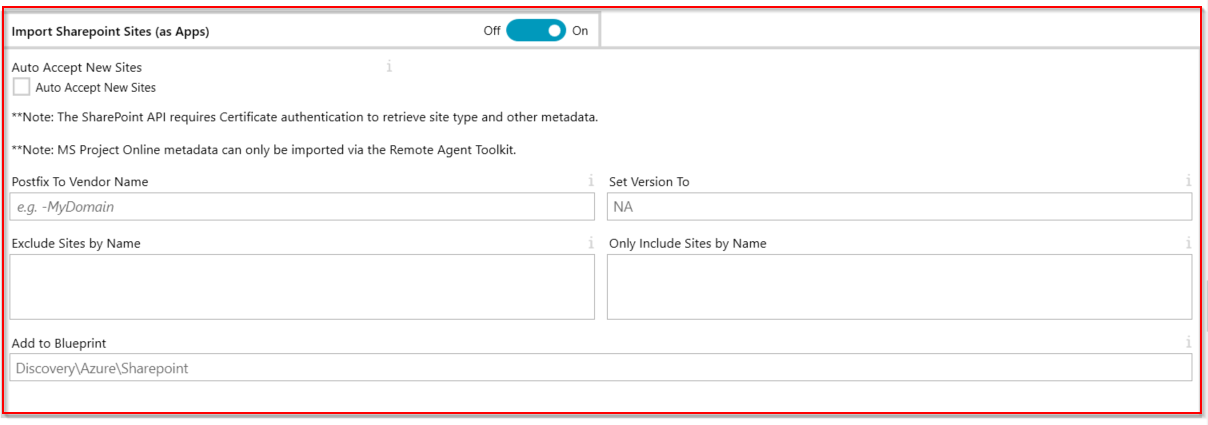

Import SharePoint Sites (As Apps)

UI Element	Description
`Auto Accept New Sites`	Automatically add new sites to the `Accepted` queue (default is `Pending`).
Note: SharePoint API requires certificate authentication for site metadata retrieval.
Note: MS Project Online metadata is only imported via Remote Agent Toolkit.
`Postfix to Vendor Name`	Appends value to 'SharePoint Site' as there is no vendor field.
`Set Version to`	Sets version value for sites (defaults to `N/A` if blank).
`Exclude Sites by Name`	Exclude sites via Regex rules (one per line).
`Only Include Sites by Name`	Only import sites matching Regex rules (one per line).
`Add to Blueprint`	Add all new SharePoint sites to specified Blueprint.

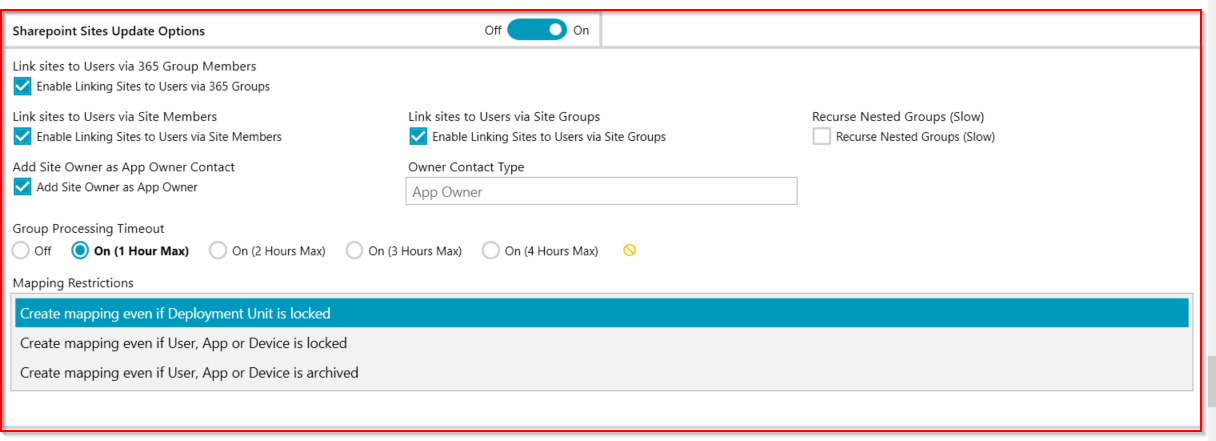

SharePoint Sites Update Options

UI Element	Description
`Link sites to Users via 365 Group Members`	Link sites to users based on 365 group membership.
`Link Sites to Users via Site Members`	Link sites to users based on site member list.
`Link sites to Users via Site Groups`	Link sites to users by site groups.
`Recurse Nested Groups (Slow)`	Recurse nested groups for member discovery. Note: Very slow and AD intensive.
`Add Site Owner as App Owner Contact`	Set site owner as application owner.
`Owner Contact Type`	Specify the owner contact type for the application.
`Group Processing Timeout`	Select processing timeout: 1, 2, 3, or 4 hours.
`Mapping Restrictions`	Allow mapping even if: - Deployment Unit is locked - User/App/Device is locked or archived

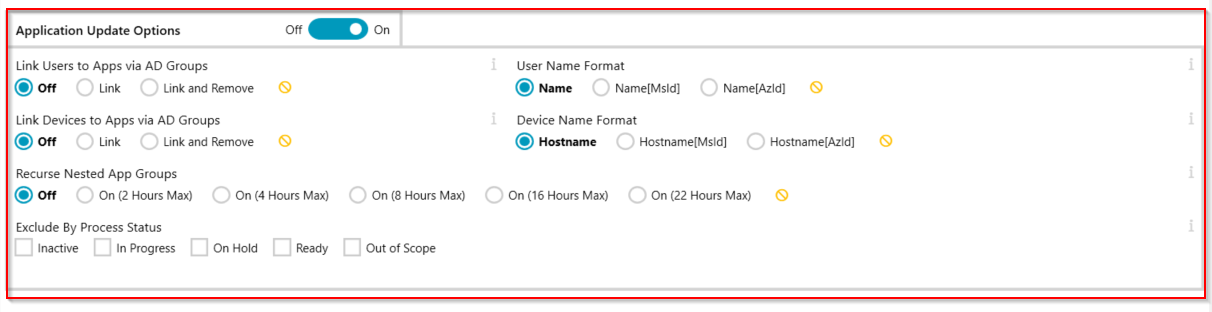

Link Apps via Group Membership

UI Element	Description
`Link Users to Apps via AD Groups`	- `Link`: Create User-App link if user is present in ManagementStudio - `Remove`: Remove App if user leaves Azure AD group
`User Name Format`	Specifies the display format for user lists linked from AD group.
`Link Devices to Apps via AD Groups`	- `Link`: Create Device-App link if device is present in ManagementStudio - `Remove`: Remove App if device leaves Azure AD group
`Device Name Format`	Specifies display format for device lists linked from AD group.
`Recurse Nested App Groups`	Recursively search Azure AD sub-groups for users/devices. Slow and AD intensive. Use only if necessary.
`Exclude By Process Status`	Exclude apps from update/linking phase based on selected process statuses.

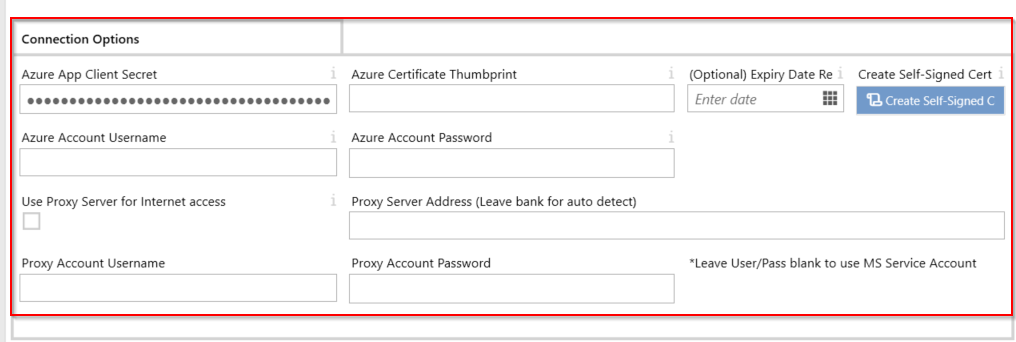

Connection Options

UI Element	Description
`Azure App Client Secret`	Enter the App Client Secret created during Azure App registration.
`Azure Certificate Thumbprint`	Specify certificate thumbprint (for application certificate-based authentication).
`(Optional) Expiry Date Reminder`	Optionally enter the App Client Secret expiry date.
`Create Self-Signed Cert`	Attempt to create a self-signed certificate for use with Azure. IIS service account profile must be loaded.
`Azure Account Username`	Username for Azure AD authentication.
`Azure Account Password`	Password for Azure AD authentication.
`Use Proxy Server for Internet Access`	Enable to connect via a proxy server.
`Proxy Server Address`	Specify the proxy server address (leave blank for auto-detect).
`Proxy Account Username`	Proxy authentication username. (Leave blank to use ManagementStudio service account.)
`Proxy Account Password`	Proxy authentication password. (Leave blank to use ManagementStudio service account.)

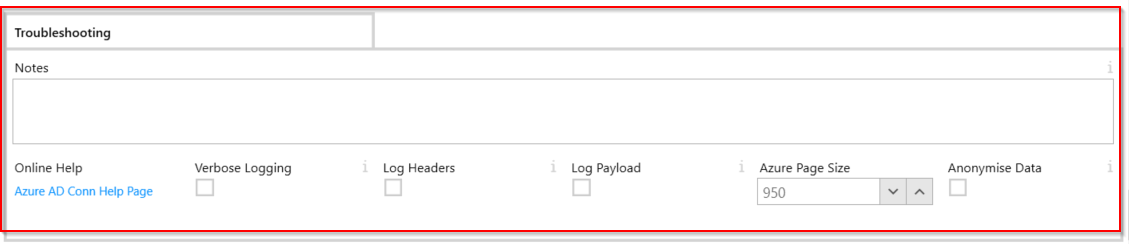

Troubleshooting

UI Element	Description
`Notes`	Enter project environment notes.
`Verbose Logging`	Enable for detailed logs (large file sizes, use only for troubleshooting).
`Log Headers`	Enable header logging for troubleshooting (large logs).
`Log Payload`	Enable payload logging for troubleshooting (large logs).
`Online Help`	Link to online Solutions article.
`Azure Page Size`	Configure the Azure API page size if required.
`Anonymise Data`	Only import necessary data to create User-App-Device links. Scrambles SamAccount/device names.

Adding a New Azure Connection

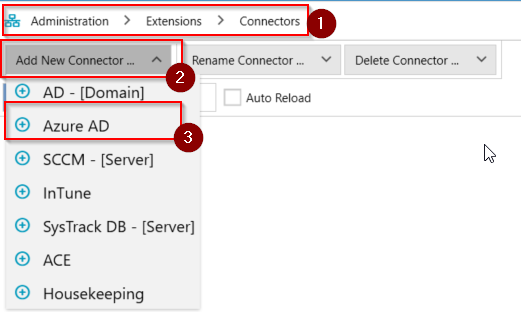

Navigate to Administration → Extensions → Connectors (1).
Click Add New Connector(2).
Select Azure AD(3).
Enter a name for the connector and click OK.

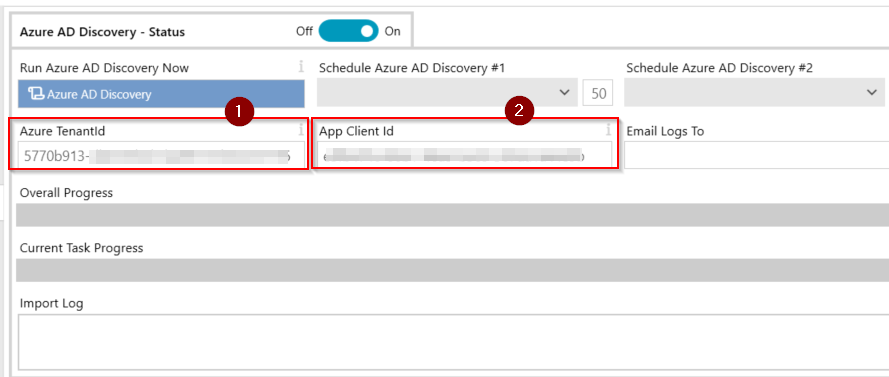

Enter your Azure TenantId (1) and App ClientId (2) in the Azure AD Discovery panel.

Scroll to the Connection Options panel and choose your authentication method:
- Use Azure Account Username and Azure Account Password (1) or
- Use the Azure App Client Secret (2).
Click Save Changes.

Enable the required panels and configure each as needed.
Click Save Changes.
Click Run Azure AD Discovery.
Click Continue.
After a few minutes, click Reload.
Check the Import Log for status of the import.
To schedule the Azure AD Connector at set intervals, see: Scheduling Connectors.

Azure Keywords

ManagementStudio provides built-in mappings for common Azure AD user and device fields. These can be mapped directly during connector setup.

Special Keywords

ManagementStudio supports special keywords for Azure data post-processing. These may be used in field mappings.

User Special Keywords

Category	Keyword(s)	Description
AccountEnabled	`[MS_AccountEnabledYN]`	Resolves to `Yes` or `No`
	`[MS_AccountEnabledTF]`	Resolves to `TRUE` or `FALSE`
	`[MS_AccountEnabledED]`	Resolves to `Enabled` or `Disabled`
MemberOf	`[MS_MemberOfName]`	Group names
	`[MS_MemberOfId]`	Group IDs
	`[MS_MemberOfNameAndId]`	Group name and ID
Manager	`[MS_ManagerName]`	Manager name
	`[MS_ManagerUPN]`	Manager UPN
	`[MS_ManagerNameAndUPN]`	Manager name and UPN
DirectReports	`[MS_DirectReportsName]`	Direct reports’ names
	`[MS_DirectReportsUPN]`	Direct reports’ UPNs
	`[MS_DirectReportsNameAndUPN]`	Direct reports’ name and UPN
Misc	`[MS_IdentityIssuer]`	Identity issuer
LastActivity	`[MS_LastActivityHighest]`	Highest activity date
	`[MS_LastActivityInteractive]`	Last interactive activity
	`[MS_LastActivityNonInteractive]`	Last non-interactive activity

Device Keywords

Category	Keyword(s)	Description
AccountEnabled	`[MS_AccountEnabledYN]`	Resolves to `Yes` or `No`
	`[MS_AccountEnabledTF]`	Resolves to `TRUE` or `FALSE`
	`[MS_AccountEnabledED]`	Resolves to `Enabled` or `Disabled`
MemberOf	`[MS_MemberOfName]`	Group names
	`[MS_MemberOfId]`	Group IDs
	`[MS_MemberOfNameAndId]`	Group name and ID
Owner	`[MS_OwnerName]`	Owner name
	`[MS_OwnerId]`	Owner ID
	`[MS_OwnerUPN]`	Owner UPN
Dates	`[MS_LastActivity]`	Last activity date
Types	`[MS_DeviceType]`	Device type
	`[MS_MdmType]`	MDM Type
	`[MS_JoinType]`	Join Type

Further Support

If additional assistance is required, visit the ManagementStudio Service Desk to search the knowledge base or submit a support ticket.
