File Importer

Modified on Thu, 7 Aug at 11:02 AM

Introduction

In today’s data driven world, information often needs to be moved between systems, formats or platforms. Whether it’s uploading CSV into excel, or syncing data into Managementstudio, this task is usually handled by a file importer. File importers are essential for enabling interoperability between systems, reducing manual data entry and speeding up data processing. The file importer connector consist of the following panels:


  • File Import Status
  • Import #1
  • Import #2
  • Import #3
  • Import Links
  • Troubleshooting




An Administrator has the ability to toggle between OFF/ON within the following panels described below.

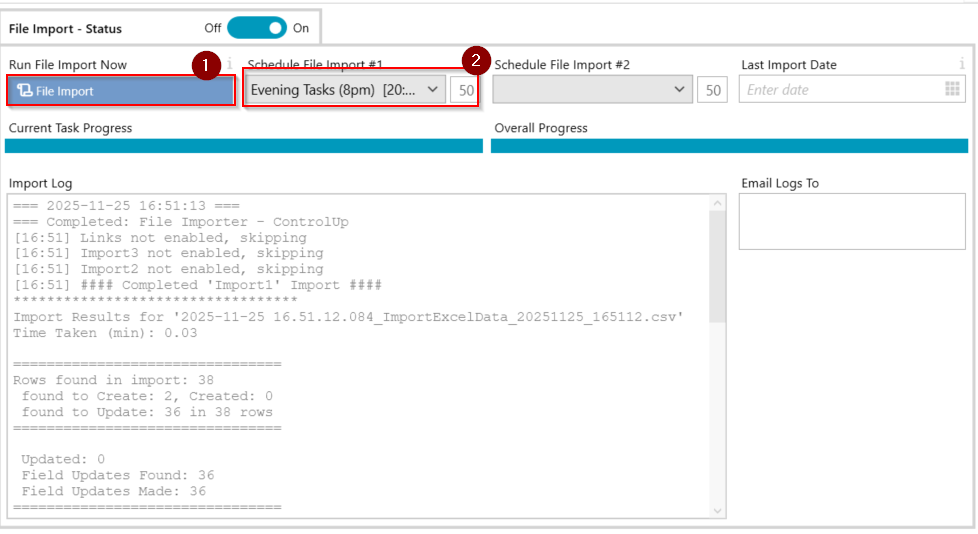

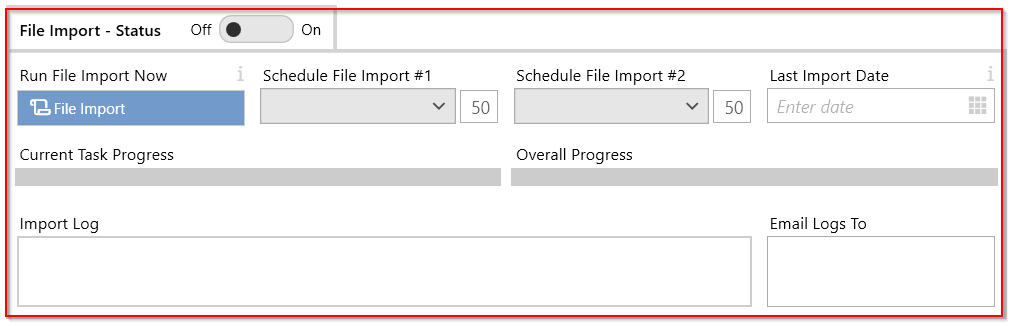

File Import Status

The table below provides information on the elements within this panel.


UI ElementDescription
Run File ImportA button to run the File Import sync now.
Schedule File Import #1Specify the times to run the File Import.
Schedule File Import #2Specify the times to run the File Import.
Last Import DateDisplays the last time the File Import ran successfully.
Current Task ProgressDisplays the current task progress.
Overall ProgressDisplays the overall progress of the File Import.
Import LogText box used to display the File import logs.
Email Logs ToList of email addresses to email a copy of the import log at the end of the sync. Use for multiple list for example t@blogg.com;Accounts@blogg.com.

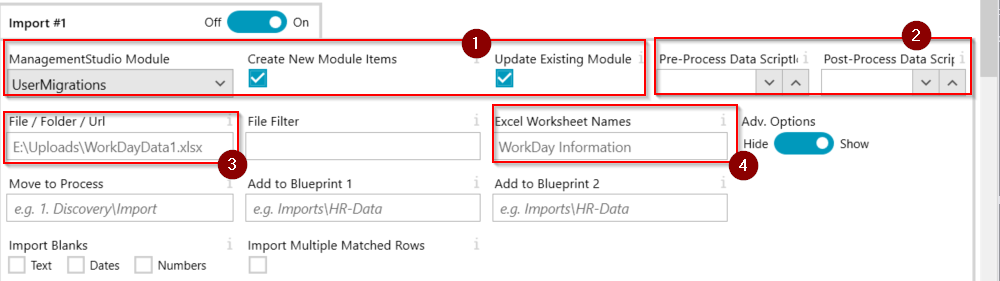

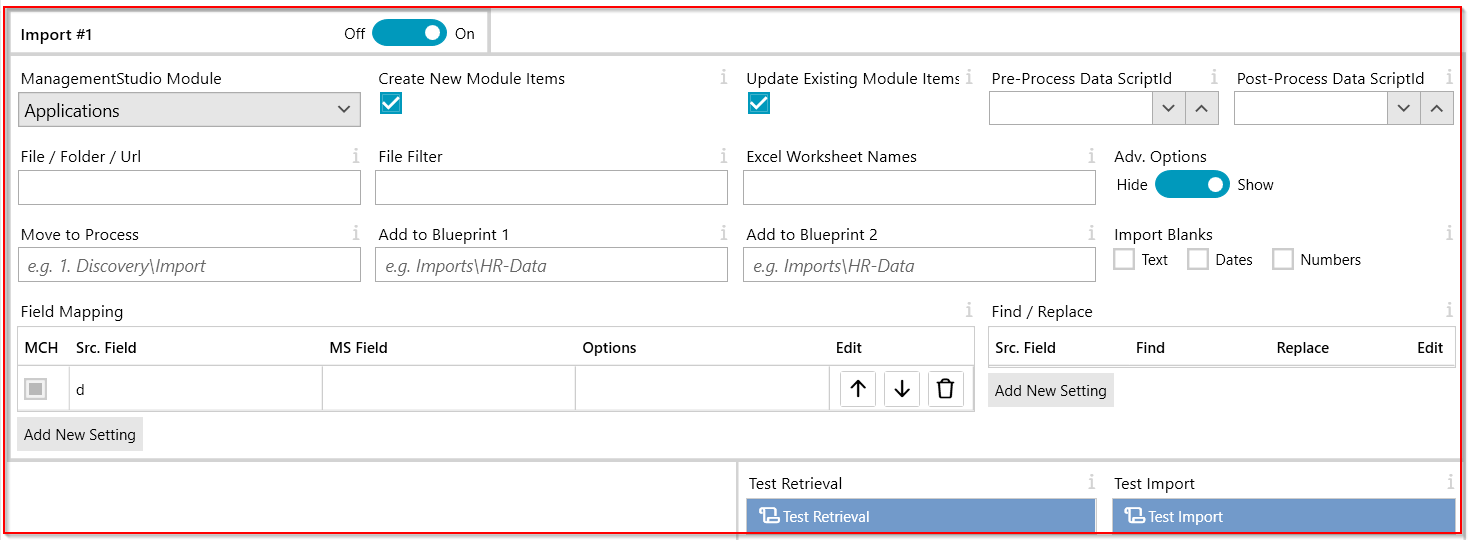

Import #1


UI ElementDescription
ManagementStudio ModuleSpecify the required module to update.
Create New Module ItemsCreate a new item if no matching record is found in eisting items.
Update Existing Module ItemsUpdate an existing item if a matching record is found in the imported data.
Pre-Process Data ScriptIdScript to run before reading the import file, this can be used to put the import file in place.
Post-Process Data ScriptIdProcess the imported data through this script before sending it for further processing.
File/Folder/UrlA file, folder or Url of the file(s) to import. This location must be accessible from the ManagementStudio server.
File FilterIf a folder path was provided a filter on which files to import can be applied. E.g. 'My_import_*.csv'.
Excel Worksheet NamesA comma delimited list of worksheet names to import if this source is an Excel document.
Adv. OptionsUse the toggle to hide or show the advanced options.
Move to ProcessMove a matched item to this process using a specified path (e.g. 1. Discovery\Import).
Add to Blueprint 1Add a new or existing Item to this Blueprint using a specified path (e.g. Imports\ServiceNow).
Add to Blueprint 2Add a new or existing Item to this Blueprint using a specified path (e.g. Imports\ServiceNow).
Import BlanksForce imported blank values to overwrite existing data (default behaviour prevents overwriting with blank values).

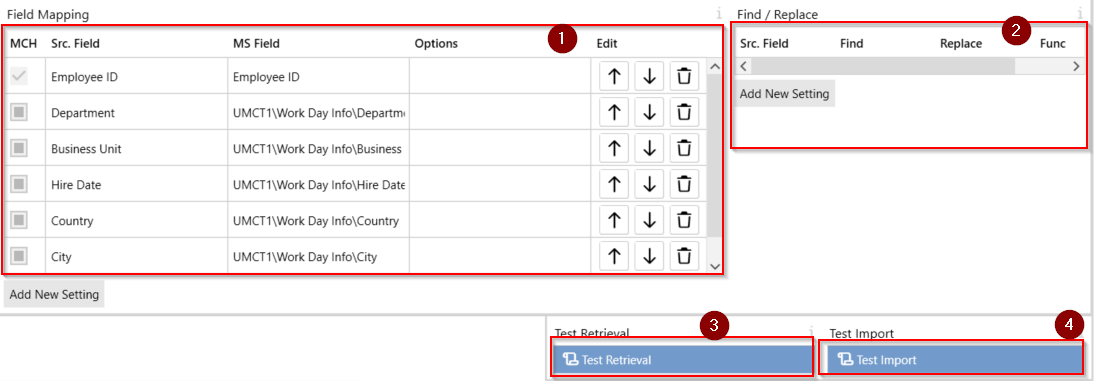

Field MappingCreate a mapping table to link source fields to ManagementStudio (MS) fields. Use the 'M' field to identify matching fields. Example Match App Vendor, Name, and Version from source data to MS data
Find/ReplaceApply basic pre-processing to the source data before importing. Use this option for find and replace operations. Example replace 'Adobe Inc' with 'Adobe'.
Test RetrievalRun the data retrieval portion of the connector to preview the results. It doesn't import the data.
Test ImportRun the data retrieval and import portion of the connector in preview mode. It doesn't import the data.

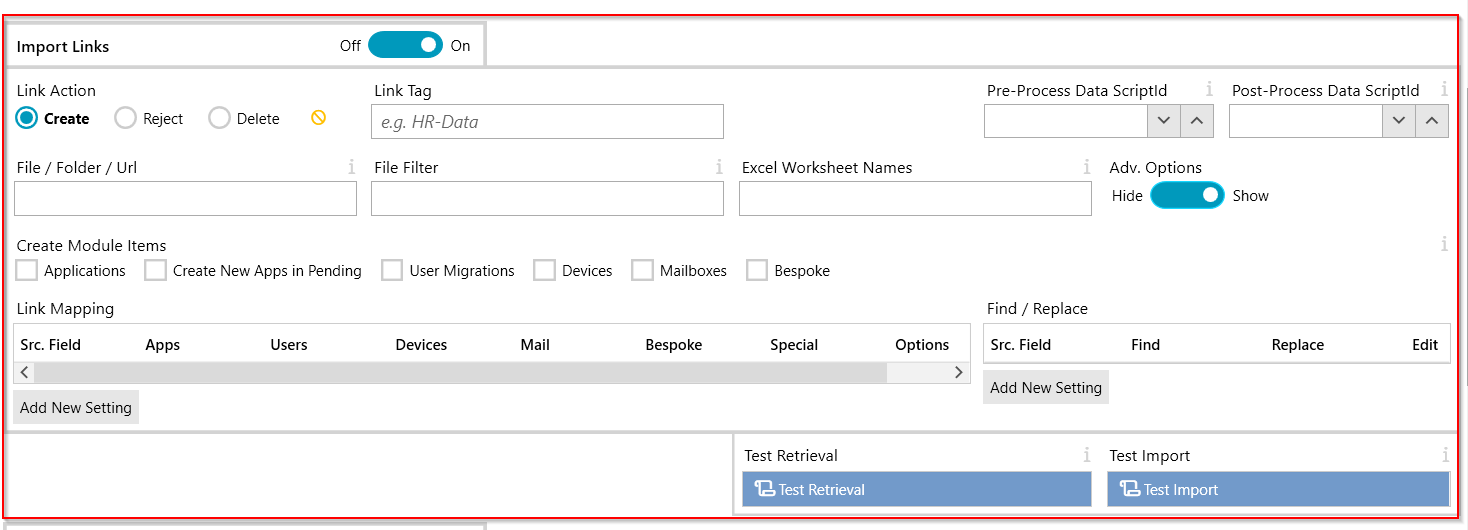

Import Links

UI ElementsDescription

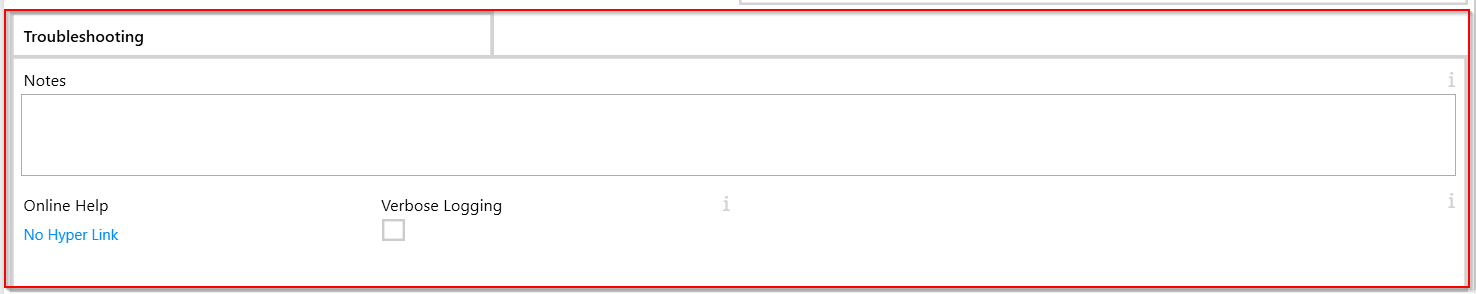

Troubleshooting



UI ElementsDescription








How File Importer Work



Further Support

If you require further support, please visit ManagementStudio's Service Desk to search the knowledge base or create a new support ticket.
