This article covers the features that are unique to the REST API Importer. For features common to all importers, please see this article.

TABLE OF CONTENTS

Introduction
Cross Project Connecting to ManagementStudio
Common Settings
Examples
Further Support

Introduction

The REST API importer can be used to connect to compatible 3rd party data sources that don't have an official ManagementStudio connector but does have a standard REST API.

Cross Project Connecting to ManagementStudio

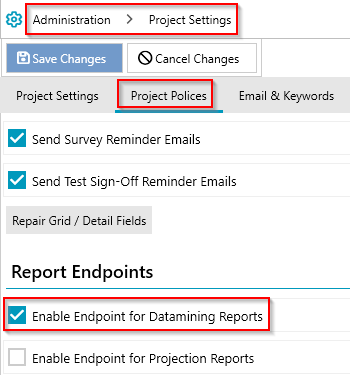

The REST API Importer allows you to connect to the same or other instances of ManagementStudio. Where cross-project sharing has been enabled, this can be used to copy data between a Primary Project and Sub-Projects that isn't shared by default.

When connecting back to ManagementStudio, refer to the [Endpoint Reports (for PowerBI) ] article for guidance on forming REST queries.

Tip: Use the keyword [importer-auth-token] as the value for the Auth-Token header when connecting to the same instance of ManagementStudio but targeting a different project or module.

Common Settings

Rest Api Endpoint Url -
- The ManagementStudio Url
- X = ProjectId of the Primary Project
- https://ServerAddress/X/p/report/Datamining/0/InternalName/json
Import Multiple Matched Rows
- Tick this option to continue importing mutiple rows after the first match is found.
- This is required for import lists such as Blueprints, Contacts & Dependencies

Examples

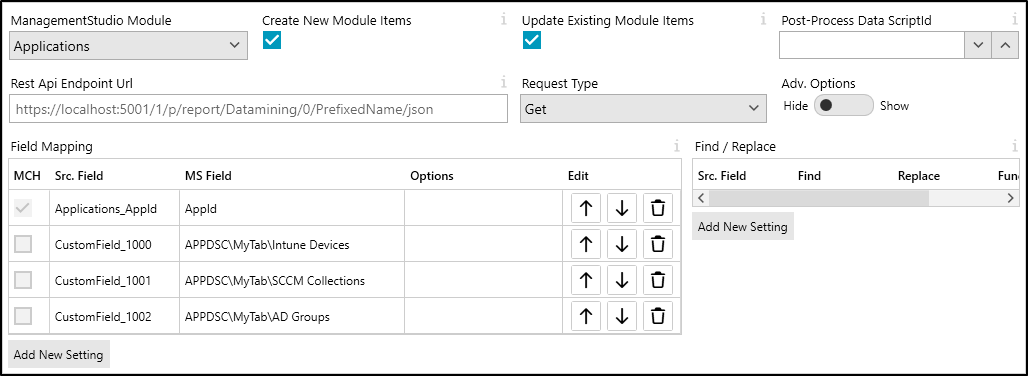

Example - Sync Custom Fields from Primary Project to Sub-Project

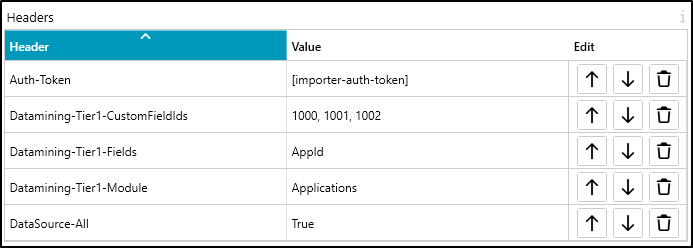

Headers

Header	Value	Note
Auth-Token	[importer-auth-token]	Auto-gen a token to connect back to MS
Datamining-Tier1-Module	Applications	Get an Applications list
Datamining-Tier1-Fields	AppId	Add the AppId field
Datamining-Tier1-CustomFieldIds	1000, 1001, 1002	List of Custom Fields from the Primary Project
DataSource-All	True	Include all Apps

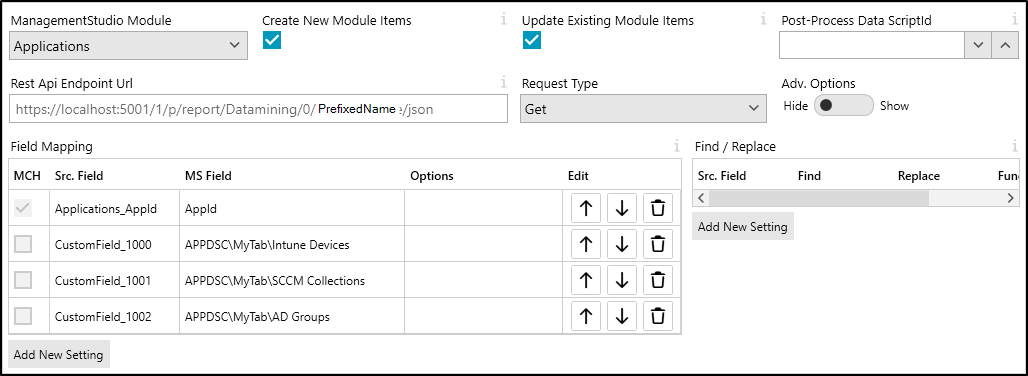

Field Mapping

MCH	Src. Field	MS Field	Notes
Yes	AppId	AppId	Use the App Id from the Primary Project to find a match in the Sub-Project
	CustomField_1000	APPDSC\MyTab\Intune Devices	Copy data from Primary to Sub-Project
	CustomField_1001	APPDSC\MyTab\SCCM Collections	Copy data from Primary to Sub-Project
	CustomField_1002	APPDSC\MyTab\AD Groups

Example - Sync App Blueprints from Primary Project to Sub-Project

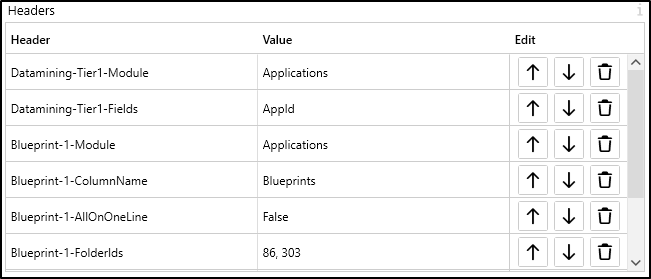

Headers

Header	Value	Notes
Auth-Token	[importer-auth-token]	Auto-gen a token to connect back to MS
Datamining-Tier1-Module	Applications	Get an Applications list
Datamining-Tier1-Fields	AppId	Get the AppId field
Blueprint-1-Module	Applications	Get Application Blueprints
Blueprint-1-ColumnName	Blueprints	Name the column the BPs will be returned in
Blueprint-1-AllOnOneLine	False	If an App has more than 1 BP, split them across multiple rows
Blueprint-1-FolderIds	86, 303	The Folder Ids to only include Blueprints from (e.g. Departments, Location)
DataSource-All	True	Include all Apps
DataSource-FilterExpression	Blueprint_Blueprints <> ''	Filter results to only Apps that have a Blueprint

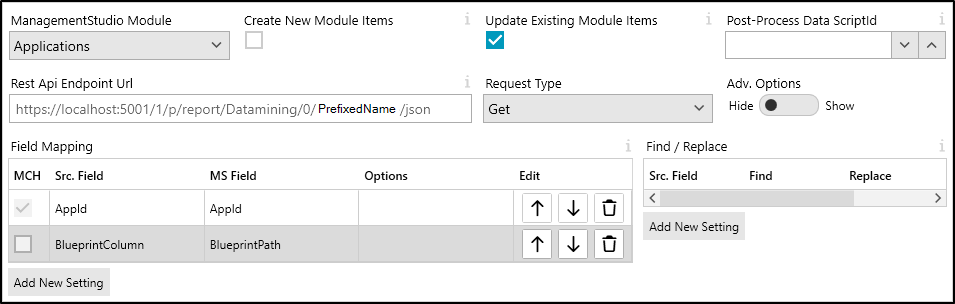

Field Mapping

MCH	Src. Field	MS Field	Notes
Yes	AppId	AppId	Use the AppId from the Primary Project to find a match in the Sub-Project
	Blueprints	BlueprintPath	Use the Blueprints column to import as a BlueprintPath keyword. This will Add Apps to this Blueprint (and create it if not found)

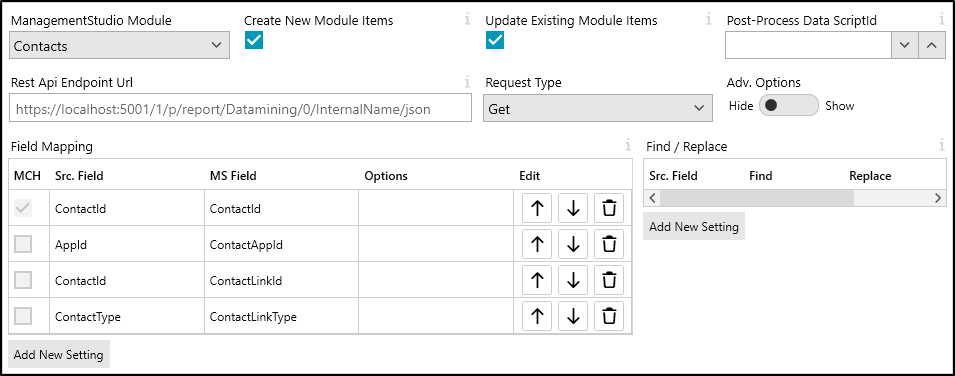

Example - Sync App Contacts from Primary Project to Sub-Project

In this example, we are targeting the Contacts module and linking them to AppIds

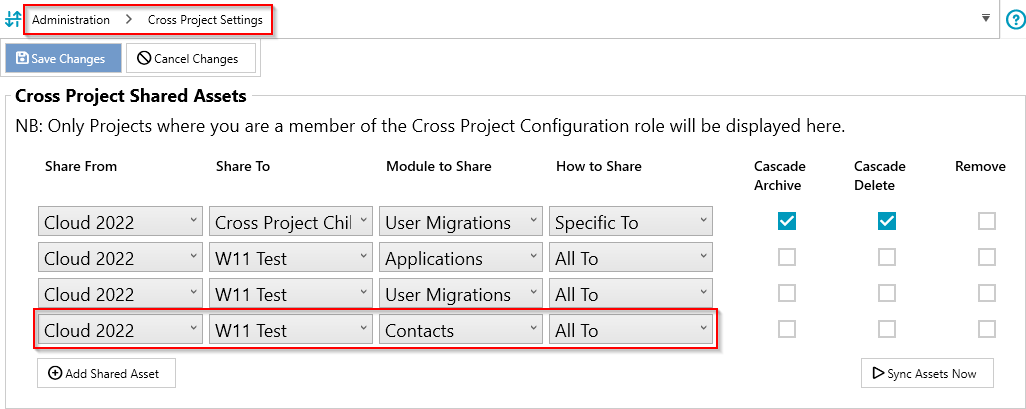

Contacts must be shared from the Primary Project to the sub-project for linking to work

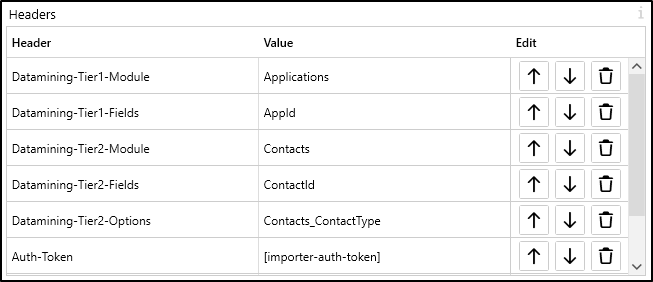

Headers

Header	Value	Note
Auth-Token	[importer-auth-token]	Auto-gen a token to connect back to MS
Datamining-Tier1-Module	Applications	Get an Applications list
Datamining-Tier1-Fields	AppId	Add the AppId field
Datamining-Tier2-Module	Contacts	Add a Contacts Tier
Datamining-Tier2-Fields	ContactId	Add the Contact Id Field
Datamining-Tier2-Options	Contacts_ContactType	Add the Contact Type Field
DataSource-All	True	Include all Apps
DataSource-FilterExpression	Contacts_ContactId >= 0	Filter results to only Apps that have a Contact

Field Mapping

MCH	Src. Field	MS Field	Notes
Yes	ContactId	ContactId	Use the Contact Id from the Primary Project to find a match in the Sub-Project
	AppId	ContactAppId	Use the AppId column to import into the linking field ContactAppId
	ContactId	ContactLinkId	Use the ContactId column to import into the linking field ContactLinkId
	ContactType	ContactLinkType	Use the ContactId column to import into the linking field ContactLinkType

Example - Sync App Dependencies from Primary Project to Sub-Project

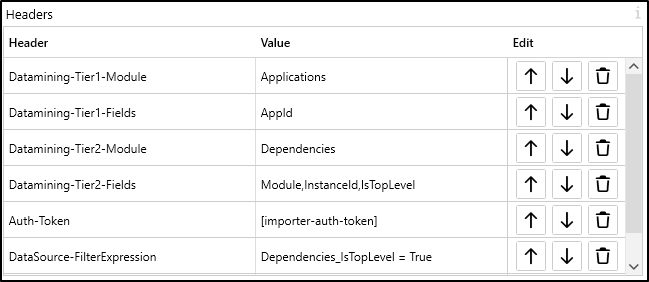

Headers

Header	Value	Note
Auth-Token	[importer-auth-token]	Auto-gen a token to connect back to MS
Datamining-Tier1-Module	Applications	Get an Applications list
Datamining-Tier1-Fields	AppId	Add the AppId field
Datamining-Tier2-Module	Dependencies	Add a Dependencies Tier
Datamining-Tier2-Fields	Module,InstanceId,IsTopLevel	Add the Module, InstanceId, IsTopLevel Fields
DataSource-All	True	Include all Apps
DataSource-FilterExpression	Dependencies_IsTopLevel = True	Filter results to Apps with a dependency and only the top-level dependencies

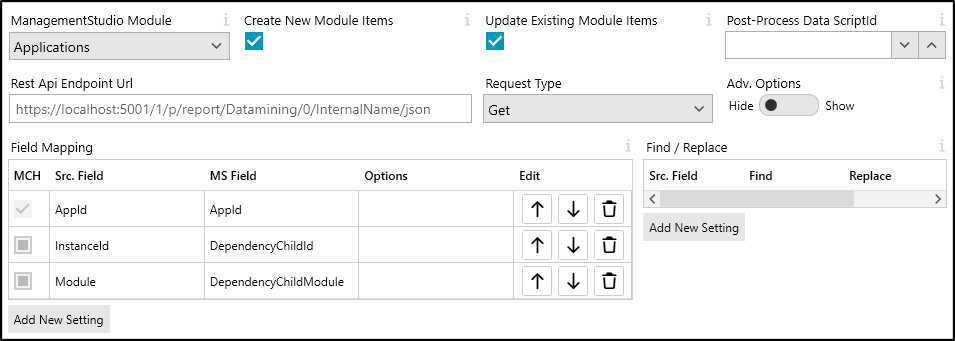

Field Mapping

MCH	Src. Field	MS Field	Notes
Yes	AppId	AppId	Use the App Id from the Primary Project to find a match in the Sub-Project
	InstanceId	DependencyChildId	Use the InstanceId of the Dependency to import as the DependencyChildId
	Module	DependencyChildModule	Which Module does the Dependency belong to
