Endpoint Reports (for PowerBI)

Modified on Thu, 26 Feb at 5:40 PM

TABLE OF CONTENTS

Endpoint Reports Overview
- Security
- Testing Reports
Reports
Header Groups
Further Support

Endpoint Reports Overview

Endpoint Reports allow third-party tools such as Power BI, PowerShell, or Postman to retrieve data directly from ManagementStudio via a REST API endpoint.

Security

Two levels of security are required for Endpoint Reports:

Enable Endpoint Report access at:
- Administration → Project Settings → Project Policies → Report Endpoints
- There is a dedicated rule for each Endpoint Report type.
Assign users to a role with permission to run the desired Endpoint Report.
- There is a distinct permission for each report type.

When accessing an Endpoint Report, include either a username/password or an authentication token in the headers.

Testing Reports

Use Postman to build and test report endpoints before connecting to tools like Power BI. Examples in this article reference Postman.

Reports

Datamining Report

Datamining Reports act as data sources for Endpoint Reports and are retrieved via the following URL structure:

https://{ManagementStudioServer}/{projectId}/p/report/Datamining/dmrid/{headers}/{format}

ManagementStudioServer: ManagementStudio server host name
ProjectId: Project ID to retrieve data from
DmrId: Reserved for future use, use 0
Header: Column header format:
- PrefixedName: e.g. Applications_AppVendor
- InternalName: e.g. AppVendor
- DisplayName: e.g. Vendor
format: Output format (json, csv, or html)

Example:

https://managementstudio.local/1/p/report/Datamining/0/PrefixedName/json

Supported Header Groups

DataSource Headers
Standard Datamining Tier Headers
Readiness Tier Headers
Auth Headers

Note:

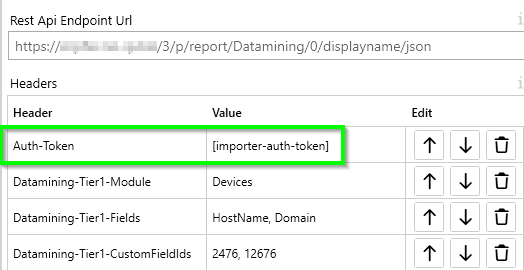

When using the REST API Connector to gather data from another ManagementStudio project within the same instance, use the importer-auth-token keyword for the authentication token. This ensures token validity and does not work across different instances (e.g., Dev to Prod); in those cases, use an API Token.

When adding tiers, name each tier sequentially (e.g., Tier1, Tier2), with Tier1 as the primary tier.

Example: 2-Tier DMR with Applications and Users

Datamining-Tier1-Module = Applications
Datamining-Tier1-Fields = AppId, AppVendor, AppName, AppVersion

Datamining-Tier2-Module = UserMigrations
Datamining-Tier2-Fields = SamAccount, Domain, Email

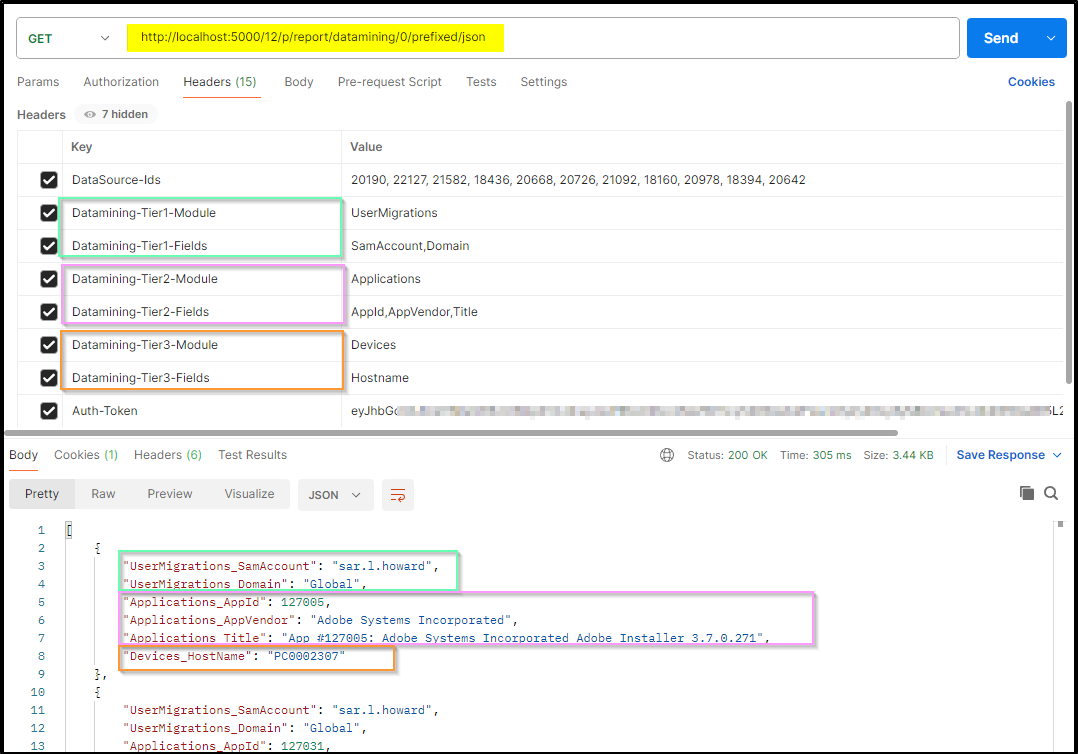

Datamining Report Example

Projection Report

Retrieve Projection Reports with the following URL structure:

https://{ManagementStudioServer}/{projectId}/p/report/Projection/{module}/0/{format}

https://your.managementstudio/1/p/report/Projection/Applications/0/json

projectId: Project ID to retrieve data from
module: Module to report on (e.g., UserMigrations)
report: Reserved for future use, use 0
format: Output format (json, csv, or html)

Supported Header Groups

DataSource Headers
Readiness Tier Headers
Auth Headers

Report Headers

Header	Type	Note
`Report-ReadyPerWeek`	int	Number of items that can be made ready per week
`Report-LookAheadWeeks`	int	Number of weeks to look into the future
`WhatIf-Module`	string	Readiness calculation module, e.g., App Readiness for Users

Example:

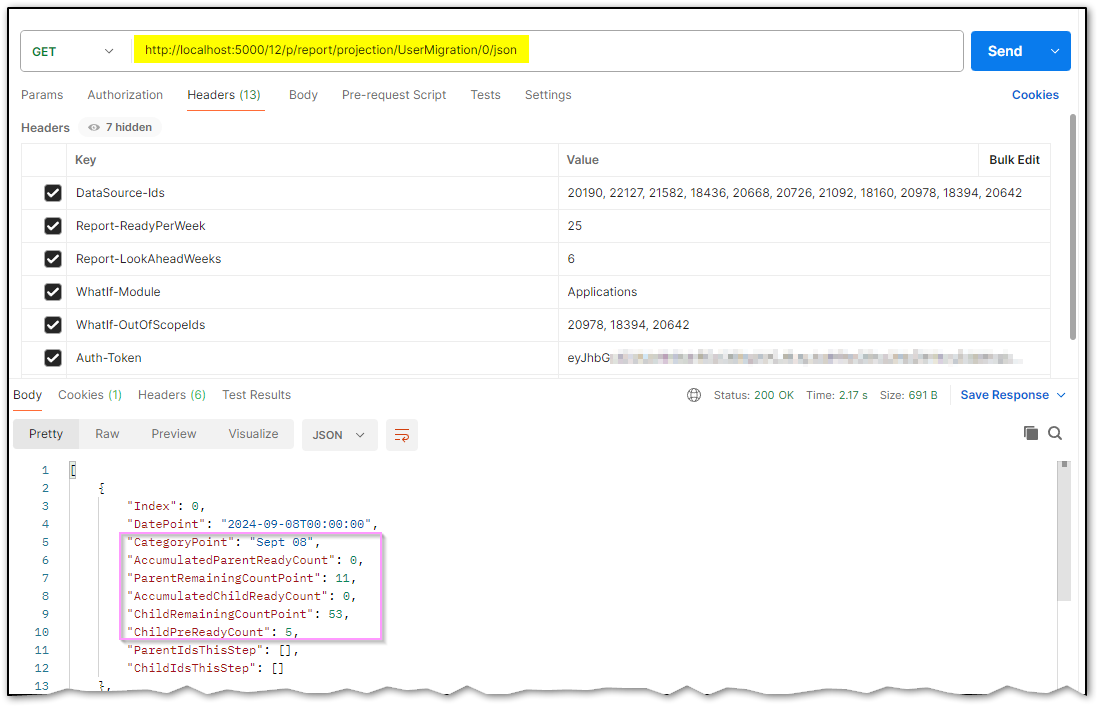

Projection Report Example

Blueprint Readiness Report

Retrieve Blueprint Readiness Reports using:

http://{ManagementStudioServer}/{projectId}/p/report/BlueprintReadiness/{module}/{report}/{format}

http://your.managementstudio/1/p/report/BlueprintReadiness/UserMigrations/default/json

projectId: Project ID to retrieve data from
module: Module to report on (e.g., UserMigrations)
report: Report scope:
- default: Only on selected items
- OneLevel: Expands Blueprint Folders one level
- AllLevels: Expands all Blueprint Folders
format: Output format (json, csv, or html)

Supported Header Groups

Readiness Tier Headers
Auth Headers

Report Headers

Header	Type	Note
`Report-BlueprintIds`	list int	List of Blueprints to include in the report
`Report-BlueprintFolderIds`	list int	List of Blueprint Folders to include in the report
`Report-RemoveColumns`	list string	List of columns to remove from the result
`Report-WhatIfSideBySide`	bool	Compare customised What-If tier vs default What-If tier

Example

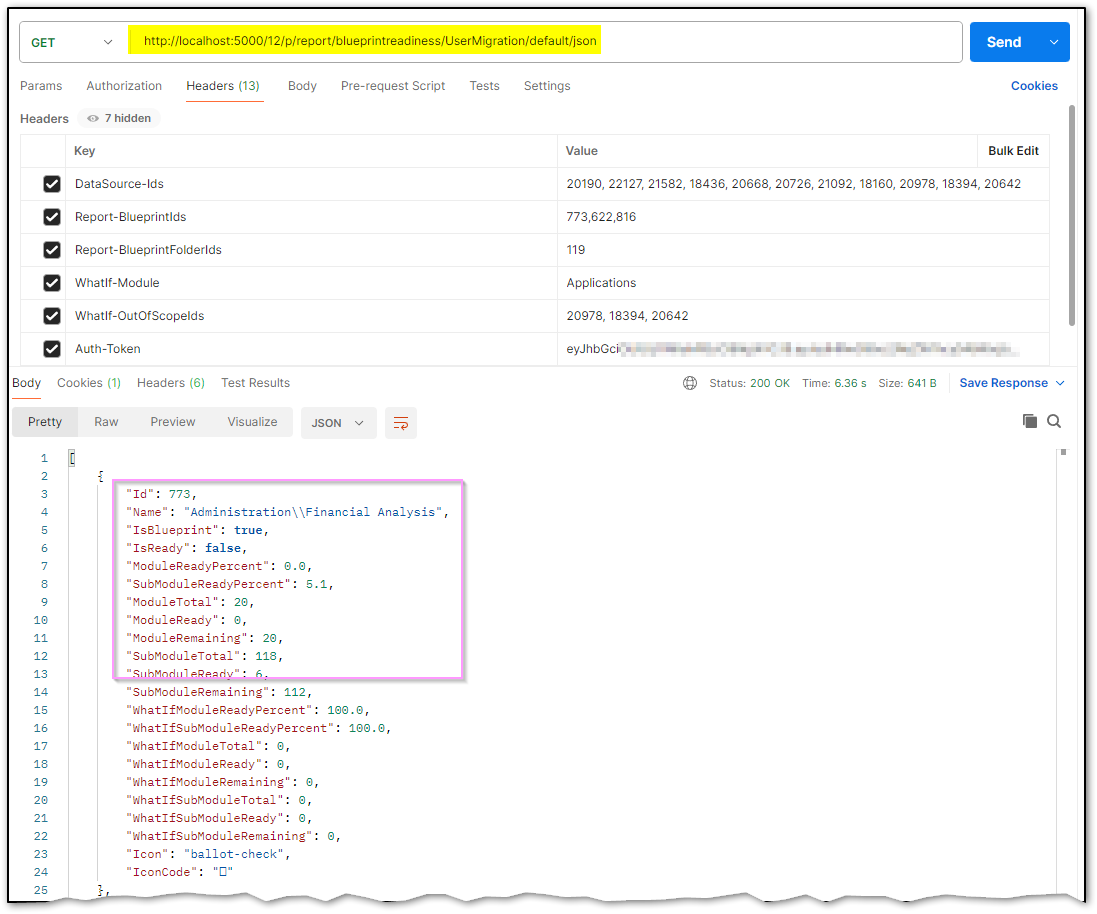

Blueprint Readiness Report Example

History Report

Retrieve History Reports using:

https://{ManagementStudioServer}/{projectId}/p/report/history/{module}/{report}/{format}

https://your.managementstudio/1/p/report/history/applications/details/json

projectId: Project ID to retrieve data from
module: Module to report on (e.g., UserMigrations)
report: Report type:
- details
- customform
- surveys
- testsignedoffs
- links
format: Output format (json, csv, or html)

Supported Header Groups

DataSource Headers
Auth Headers

Report Headers

Header	Type	Note
`Report-StartDate`	Date/Num	Date `'yyyy-mm-dd hh:mm'` or negative number of days (e.g. `-90`)
`Report-EndDate`	Date/Num	Date `'yyyy-mm-dd hh:mm'` or negative number of days
`Report-Verbose`	bool	Add verbose data to the history report
`Report-IncludeTitle`	bool	Include item title (App, User, Device, etc.)
`Report-FilterOnProperty`	list string	Prefilter results by specified property names
`Report-GroupOnProperty`	list string	Group results by specified property names
`Report-RemoveColumns`	list string	Remove columns from the result set

Example:

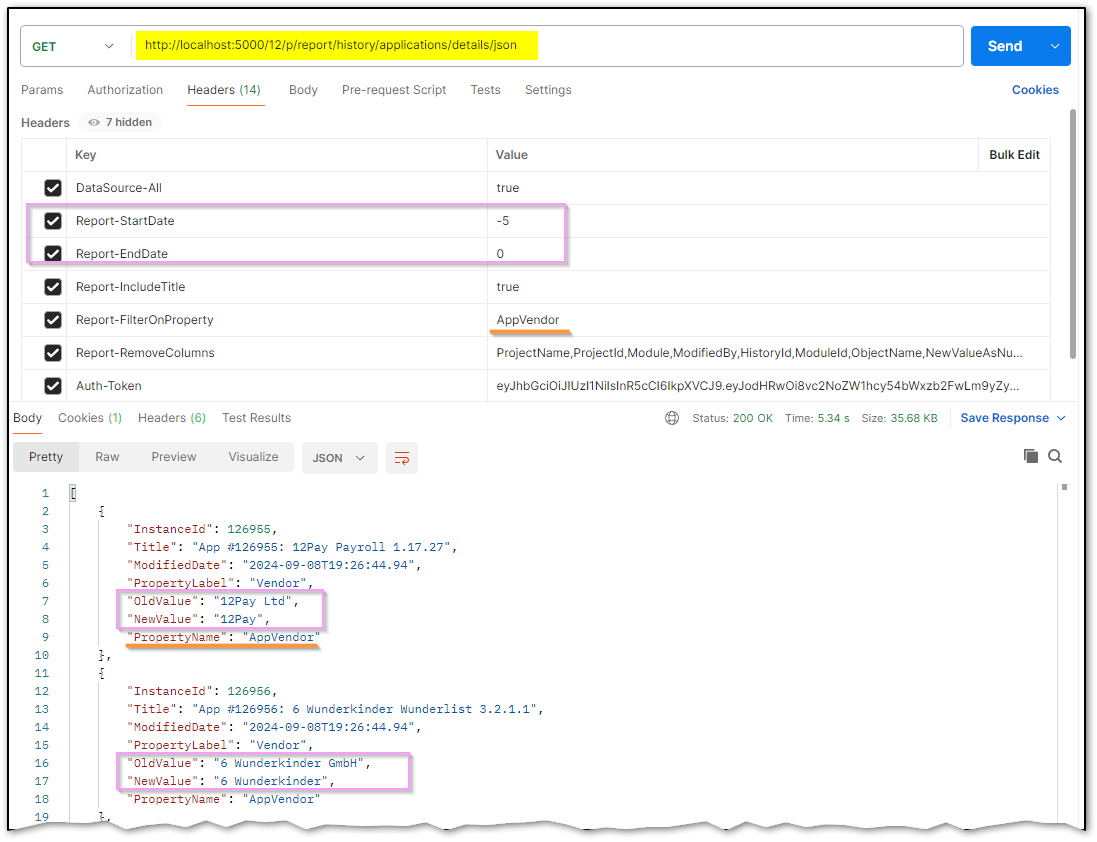

History Report Example

Header Groups

DataSource Headers

Header	Type	Note
`DataSource-All`	bool	Include all items in the report
`DataSource-Ids`	list int	List of item IDs (Apps, Users, etc.) to include
`DataSource-ProcessIds`	list int	Items in these Processes in the report
`DataSource-SubProcessIds`	list int	Items in these Sub Processes in the report
`DataSource-ExcludeProcesses`	bool	Exclude items matching process IDs/subprocess IDs
`DataSource-ProcessStatus`	list string	Include items with these Process statuses (Inactive, InProgress, OnHold, Ready, OutOfScope)
`DataSource-ExcludeProcessStatus`	bool	Exclude items matching the above process statuses
`DataSource-AppStatus`	list string	Include Apps with these statuses (Accepted, Pending, Rationalised, Rejected)
`DataSource-ExcludeAppStatus`	bool	Exclude items matching the above app statuses
`DataSource-CrossApplyAppStatus`	bool	Select items common to another filter, e.g. Apps in Pending and IT Blueprint
`DataSource-BlueprintIds`	list int	Include items in these Blueprints
`DataSource-BlueprintFolderIds`	list int	Include items in these Blueprint Folders
`DataSource-ExcludeBlueprints`	bool	Exclude items matching the above two lists
`DataSource-DeployUnitIds`	list int	Include items in these Deployment Units
`DataSource-ExcludeDeployUnits`	bool	Exclude items matching the above deployment units
`DataSource-IncludeArchived`	bool	Include archived items
`DataSource-IncludeDeleted`	bool	Include deleted items
`DataSource-FilterExpression`	string	Filter expression for the report
`DataSource-SortExpression`	string	Sort expression for the report

Standard Datamining Tier Headers

Header	Type	Note
`Datamining-TierX-Module`	string	Module type for the tier (Applications, UserMigrations, Devices, etc.)
`Datamining-TierX-Fields`	list string	Fields to include for the tier
`Datamining-TierX-HistoryFields`	list string	Fields with last modified value, date, user
`Datamining-TierX-CustomFieldIds`	list int	Custom field IDs to include for the tier
`Datamining-TierX-HistoryCustomFieldIds`	list int	Custom field IDs with last modified data
`Datamining-TierX-Options`	list string	Options to simulate, e.g., "Add Last 5 Notes"

Blueprint Columns

Header	Type	Note
`Blueprint-X-Module`	string	Module type (Applications, UserMigrations, Devices, etc.)
`Blueprint-X-ColumnName`	list string	Unique name for each Blueprint column
`Blueprint-X-AllOnOneLine`	bool	True: Multiple BPs in one cell; False: One per line
`Blueprint-X-TrimToFolderBlueprint`	bool	Limit folders in path if BP is deep within subfolders
`Blueprint-X-TrimToFolderDepth`	list int	Number of folders to show in the path
`Blueprint-X-BlueprintIds`	list int	Blueprint IDs to include
`Blueprint-X-FolderIds`	list int	Folder IDs to include
`Blueprint-X-BlueprintPaths`	list string	Blueprint paths to include
`Blueprint-X-FolderPaths`	list string	Folder paths to include

Readiness/What-If Tier Headers

For What-If in Projection/Blueprint Readiness Reports, use the WhatIf- prefix. For Datamining Reports, use Datamining-ReadyX where X is the tier number.

Header	Type	Note
`{prefix}-Module`	string	Module type (Applications, UserMigrations, Devices, etc.)
`{prefix}-IncludePendingApps`	bool	Include Pending Apps in readiness calculation
`{prefix}-ExcludeCoreApps`	bool	Exclude Core Apps from readiness calculation
`{prefix}-IncludeDependencies`	bool	Include dependencies in readiness calculation
`{prefix}-IncludeArchivedDeleted`	bool	Include archived/deleted items
`{prefix}-ReadyIds`	list int	IDs to consider 'Ready'
`{prefix}-OutOfScopeIds`	list int	IDs to consider 'Out of scope'
`{prefix}-Custom-ReadyProcessIds`	list int	Processes to consider 'Ready'
`{prefix}-Custom-ReadySubProcessIds`	list int	Subprocesses to consider 'Ready'
`{prefix}-Custom-OutOfScopeProcessIds`	list int	Processes to consider 'Out of scope'
`{prefix}-Custom-OutOfScopeSubProcessIds`	list int	Subprocesses to consider 'Out of scope'
`{prefix}-ExcludedLinkIds`	list int	Link IDs to exclude from readiness calculation

Auth Headers

Header	Type	Note
`Auth-Username`	string	Username/password combo for ManagementStudio
`Auth-Password`	string	Note: Single Sign-On (SSO) is not supported
`Auth-Token`	string	Auth token generated via Administration → User Accounts → Create Auth Token
		For REST API importer in ManagementStudio, use the value `[importer-auth-token]`

Further Support

If you require further support, please visit ManagementStudio's Service Desk to search the knowledge base or create a new support ticket.
