Portal Forms (Surveys) - PS/JS/CSS

Modified on Thu, 22 Jan at 1:21 PM

TABLE OF CONTENTS

Overview
Accessing the Portal Form Editor
Using PowerShell, JavaScript, and CSS
- Example Scenario: IT Policy Acceptance Workflow
- Additional Information
Further Support

Overview

ManagementStudio supports extending portal forms, formerly known as surveys, by allowing administrators to customise presentation and functionality using the following technologies:

Technology	Description
PowerShell	Automate ManagementStudio tasks and interact with external applications via API.
Cascading Style Sheets (CSS)	Control the visual presentation of HTML elements, such as font, text colour, or background colour.
JavaScript (JS)	Programmatically modify the structure of HTML and add dynamic functionality, e.g., inserting standard footer text.

Accessing the Portal Form Editor

Portal forms are available for all migration modules and can be accessed via the Administration module.

Navigation:

For all modules:
Administration → [Module] → Surveys (moved)

or

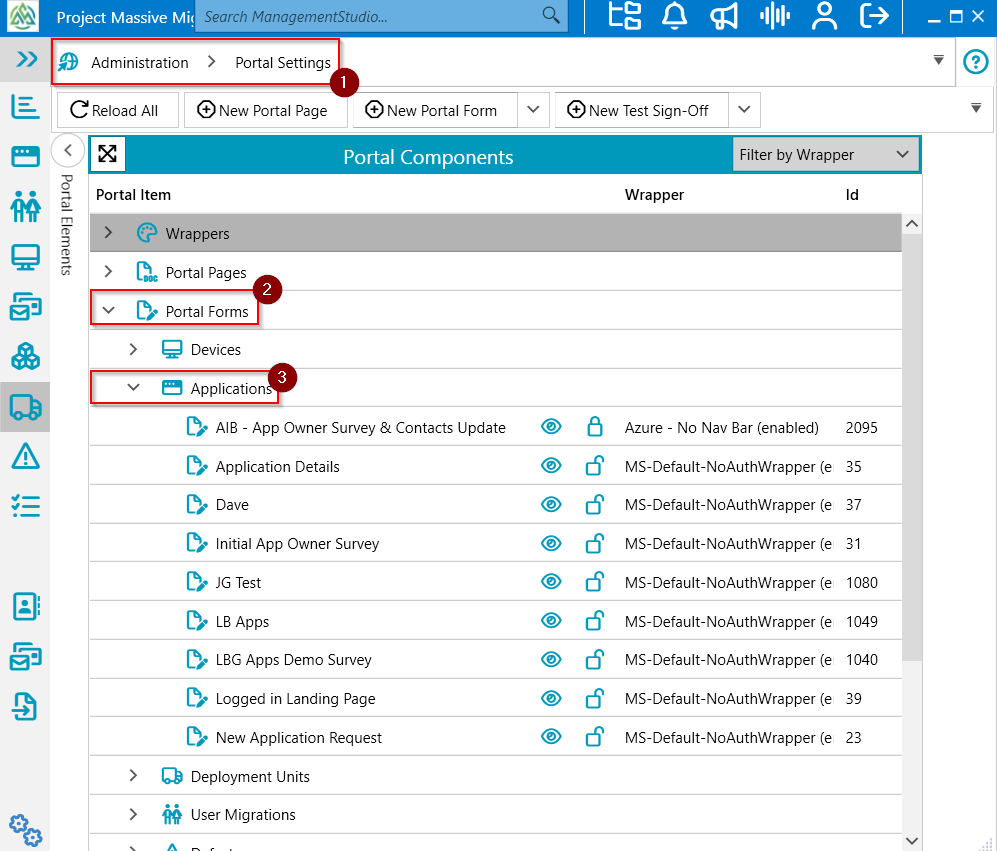

Administration → Portal Settings → Portal Forms → [Module]

Example – Applications Module:

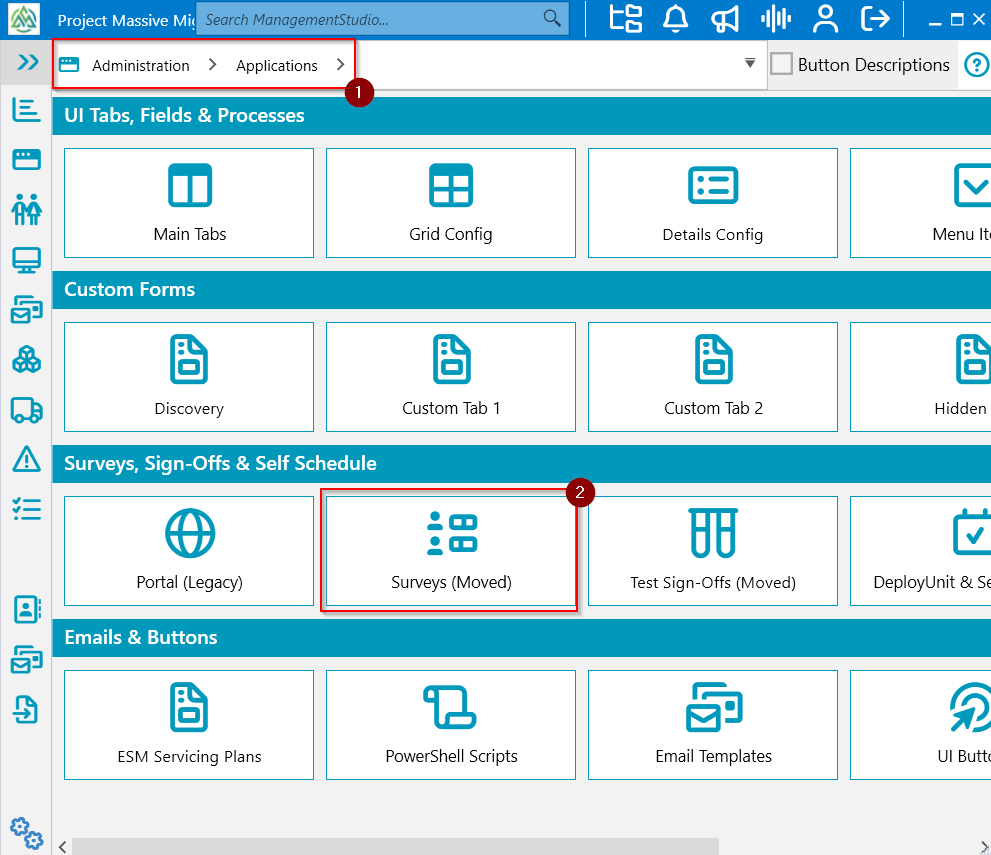

Administration → Application → Surveys (moved)

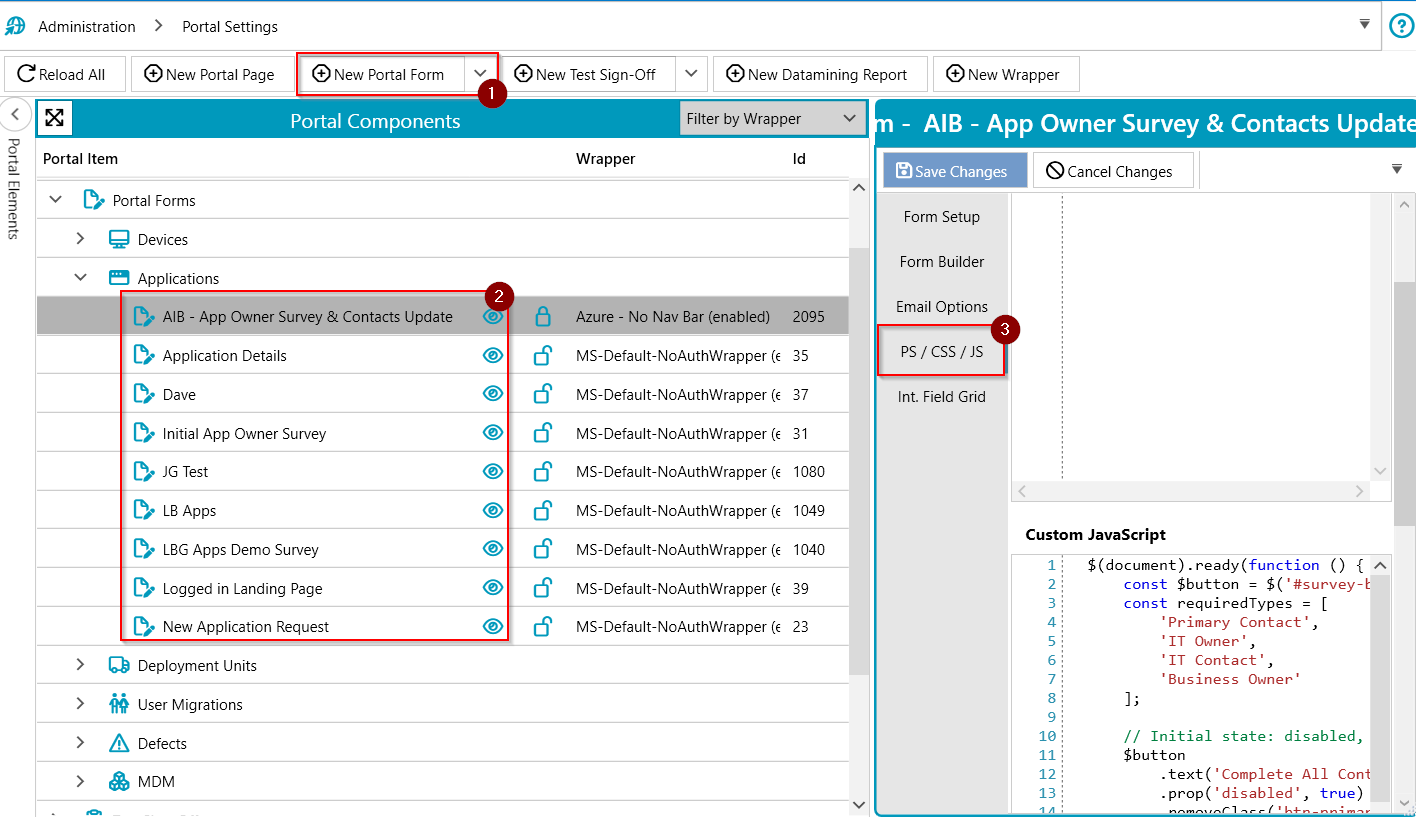

From the Portal Forms page:

Create a new portal form or select an existing one by expanding the relevant module.
Load the portal form.
Select the PS / CSS / JS tab from the vertical menu on the left.

Using PowerShell, JavaScript, and CSS

You can enhance portal forms using:

JavaScript (JS): Manipulate UI elements and add interactive features.
CSS: Customise the visual style of survey components.
PowerShell (PS): Automate actions and interact with ManagementStudio data.

Example Scenario: IT Policy Acceptance Workflow

A company wants to use a portal form to distribute a new IT policy and track user acceptance.

JavaScript (JS)

Disable the Submit button until the user acknowledges the terms and conditions.

Example: Make the portal form use 100% width

Paste the following code into the Custom JS box:

document.getElementById('header-container').setAttribute("class", "container-fluid");
document.getElementById('body-container').setAttribute("class", "container-fluid");

CSS

Highlight important sections of the policy using a custom background colour.
Define this in the survey's CSS and reference it in the survey content.

PowerShell (PS)

Automate tracking and processing with custom workflows.

Workflow	Description
5.1 - Email Policy	When users enter this workflow, a custom automation rule emails the survey to users and moves them to the next process.
5.2 - Users Received Policy	Marks users who have received the policy. Upon submitting the form, a PowerShell script records policy acceptance and advances the user.
5.3 - Policy Accepted	Contains all users who have accepted the new IT policy.

This setup allows project administrators to monitor policy distribution and acceptance.

Additional Information

For more examples and detailed guidance on using PS/JS/CSS in surveys, refer to:
PS/JS/CSS in Surveys – Tests

Further Support

For additional assistance:

Visit the ManagementStudio Service Desk to search the knowledge base or submit a support ticket.
