TABLE OF CONTENTS

• Introduction
• Accessing Defects
• The Defects Layout
• Creating a New Defect
• Using the Context Menu
• How to bulk copy field information from the Grid
  • Keyboard Shortcuts
• Further Support

Introduction

A defect is an error in coding or logic that causes a program to malfunction or to produce incorrect/unexpected results. The defects module provides the ability to log issues against an object within ManagementStudio, a defect can be recorded against an Application, User Migration, device, project and a deployment Unit etc . This functionality also gives you the ability to view all defects recorded within a project.

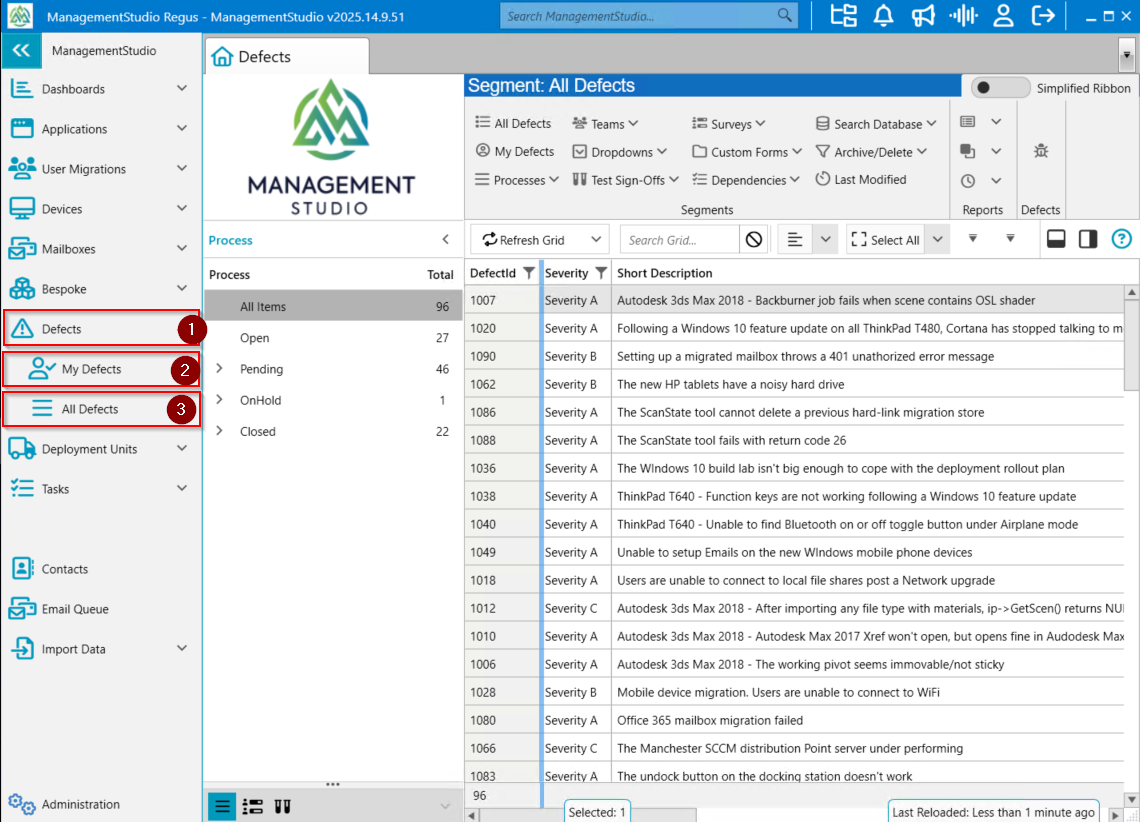

Accessing Defects

To view the Defects:

• Click on the 'Defects' (1) menu from the left hand pane and select one of the following:
  •  'My Defects' (2) to display all defects that are assigned to you or
  •  'All Defects'(3) to view all the defects within your project

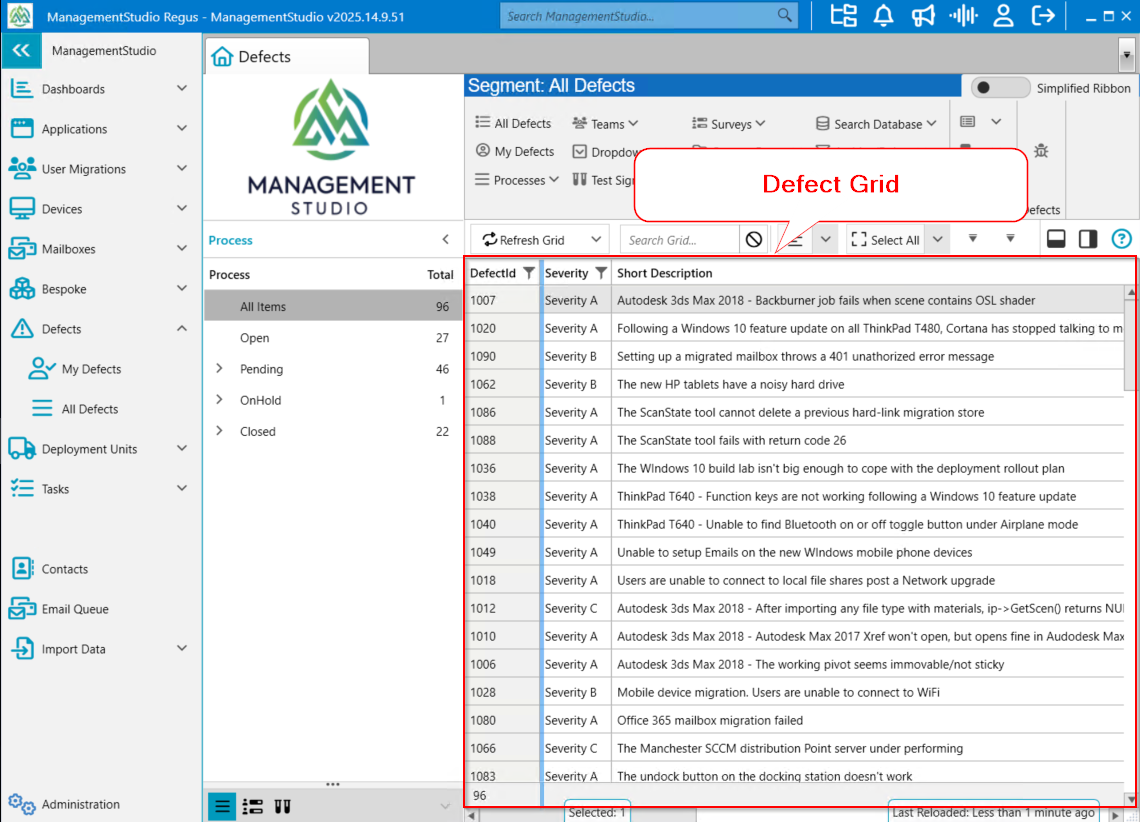

The Defects Layout

The Defects module follows the same Common Grid Layout format as the Applications, Users, Deployment Units, Devices and Bespoke modules. A description of the Common Grid Functionality can be found in this article.

• Defect Grid Config
  • Defectid - A unique identifier recorded against each defects
  • Severity - Severity of the defect
  • Short Description – A brief description of the defect
  • Business Impact – The impact of the defect to the organisation
  • Process – Process of the defect which could be open, pending or closed
  • Sub Process - Sub-process of the defect
  • Module – Specific module of the product where the defect was detected
  • Parent
  • Parent Id
  • Description – Detailed description of the defect. Describe as much as possible but without repeating anything or using complex words
  • Process Status – The status of the defect
  • Priority – Priority of the Defect
  • Next Action Due – The date when the next action is due
  • Created By – The name of the person who created the defect
  • Delegate 2 – The name of the person that is delegated to analyze/fix the defect
  • Archived - This denotes, if the defect is either archived or un-archived
  • Locked - This denotes, if the defect is either locked or un-locked

Additional custom fields can be enabled within the Admin section. Administration->Defects->Grid Config

Creating a New Defect

Any defects created within the defects module will be recorded as a projects defect. A defect against any of the modules needs to be created from the module itself. E.g. A device defect needs to be recorded from the device module.

Click the New button in the Toolbar at the top of the screen
Fill in the Short Description and Business Impact Choose the Process and Sub Process that the defect will be assigned to. The default will already be selected Click New

Using the Context Menu

The Context Menu (Right Click on the Grid) provides multi select functionality to the grid. It is possible to select one item using the left click of the mouse, or multiple items using a combination of ctrl or shift and left click. Once selected Right Click the mouse for the Context Menu.

General Information

Open Details: show the details tab for one or many items. It is possible to open in a new Tab or new Window. New Note: Add Note information to one or many Defects. These notes are displayed in the Details Tab New Task: Create a New Task for the Defect. Tasks will appear in the Task Tab as well as the Tasks Module Move to Process: Change the Process and Sub Process of one or many Defects Teams: Assign team members to Defects. This could be engineers, delegates etc Update Fields: Bulk update Text, Dropdown and Date fields from the Details Tab Update Custom Form: Bulk update Custom Form information for multiple Defects Copy: Bulk copy one or many fields. See below Lock: Lock and Unlock Defects. Locking will stop any changes and updates to the record Archive: Place Defects into an Archived state. These Defects will only be visible using the Segments\Other Filters\Archived view from the Ribbon Delete: Mark Defects for permanent deletion. These Defects will be deleted after a set period of time. Until permanent deletion they can be viewed using the Segments\Other Filters\Deleted view and can then be Undeleted using the context menu

How to bulk copy field information from the Grid

It is possible to copy multiple key information for multiple defects on the grid by utilising the right click context menu.

Select one or more defects on the grid, right click and select Copy
Select the fields (1)to be copied from the advanced copy menu
Click Copy (2)

Note: The Copy button has three additional choices:
-Copy No Header
-Copy Comma Delimited
-Copy Space Delimited

Keyboard Shortcuts

• Save Changes: CTRL+S
• Reload: CTRL+R

Further Support

If you require further support, please visit ManagementStudio's Service Desk to search the knowledge base or create a new support ticket.
